kdetect — Catching a Linux Rootkit in a Contradiction

Project note kdetect is a Linux kernel rootkit detector I wrote in Python. Everything here ran on a disposable Debian 12 VM I built from a verified installer, on a host-only segment, with the rootkit source deliberately kept out of the repository. Source: github.com/basil9099/kdetect.

TL;DR

A rootkit’s whole job is to answer questions dishonestly. Anything that asks /proc once and believes the answer is asking the compromised party for a character reference. kdetect asks the same question through several channels that a rootkit has to subvert separately, records every answer, and reports where they disagree. The disagreement is the finding.

Detection turned out to be the easy half. The hard half was proving the disagreements meant something, because a clean Debian box disagrees with itself constantly for reasons that have nothing to do with rootkits. My first naive comparison reported about ninety hidden processes on a machine with nothing loaded on it.

The problem with asking /proc

Most process hiding on Linux happens at the /proc readdir path. A rootkit hooks the directory listing, drops its own entries, and every tool that walks /proc inherits the lie. ps, top, htop and your EDR agent all read the same directory.

So running ps twice proves nothing. Running two different tools proves nothing either, if both are built on the same listing. To catch the lie you need a question the rootkit answered somewhere else, and then you need the two answers side by side.

Cross-view detection

The idea is old. For a hidden process, kdetect asks four ways:

• readdir — walk /proc and record what the listing offers. This is the channel under attack.
• syscall sweep — call kill(pid, 0) for every possible task id. That answers from the kernel’s task table, not from a directory.
• direct read — read /proc/<tid>/status by path. /proc/<pid> answers even when readdir refuses to list it, and it returns identity as well as existence.
• socket ownership — attribute open sockets back to owning pids through /proc/<pid>/fd.

A pid confirmed by the sweep, by a direct read, and by a socket it owns, but absent from the listing, is hidden. Modules work the same shape: /proc/modules is the listing, and kernel taint bits, unaccounted vmalloc regions, and ftrace hook ownership are three channels a module has to suppress on its own.

Two design rules fell out of this and shaped everything else. Snapshots hold evidence, never conclusions. And disagreement between channels stays representable; nothing is resolved at capture time. If two collectors contradict each other, both answers get written down and the analysis stage decides later.

Building a lab you can make claims about

Every finding kdetect produces is a claim about how a machine differs from clean. That claim is worth exactly as much as your knowledge of what clean looked like.

I started phase 1 on a prebuilt Debian image off the internet. That was fine while nothing was being detected, but it went into the limitations log on day one as L1: a third-party image with documented default credentials and passwordless sudo cannot tell you what uncompromised looks like. Before writing a single detector I rebuilt the VM from debian-12.12.0-amd64-netinst.iso, checked the hash and then the OpenPGP signature on the hash file, and recorded the result in the repo.

gpg --keyring /usr/share/keyrings/debian-role-keys.gpg --verify SHA256SUMS.sign SHA256SUMS

A Good signature line is the difference between trusting a certificate authority and trusting Debian. Netinst was deliberate: it installs only what you ask for, so the machine stays small enough that you can plausibly account for every package on it.

The rest of the lab discipline is unglamorous and non-negotiable. Snapshot before loading anything live. Switch the adapter to host-only before the rootkit loads, not after. Commit and push everything you want to keep while still on the clean snapshot, then never push again until you’re back on it. The VM holds a deploy key, and a compromised machine is a bad place to be authenticating from. Rootkit source and binaries are gitignored and never committed; the only kernel module in the repository is my own.

Step 0: measure the clean machine first

Before designing the comparison logic for each phase, I ran an evidence pass on the clean VM whose only purpose was to find out how far the channels disagree when nothing is wrong. Every clean-machine disagreement is a false positive the detector will have to explain away, and I would much rather find them before the detector exists than after.

That pass is committed under docs/step0*/.

Ninety hidden processes on a machine with no rootkit

/proc lists about 136 entries on the idle lab VM. The kill(pid, 0) sweep finds about 226 live task ids. A straight diff of those two sets reports ninety hidden processes.

None of them are hidden. /proc lists thread group leaders; the sweep hits every task, threads included. The fix is one line of intent — fold each task into its leader via Tgid before comparing — but shipping a detector that cries wolf ninety times on a clean box would have been a much slower thing to discover from the other end.

The same pass settled a timing question. Capture runs procfs → sweep → procfs, in that order, so a process that starts or exits mid-capture shows up as a channel disagreement that resolves cleanly against the second walk. Idle, the two walks and the sweep agree on the ninety thread ids and nothing else. Under deliberate process churn, only the churning processes differ, and every one of them resolves to a listed leader. That sandwich separates “the system moved” from “something is hiding”, which are otherwise the same shape of evidence.

Two more listings that disagree for boring reasons

/sys/module lists 136 entries against /proc/modules’ 72. Built-in kernel code registers a sysfs directory without being a loadable module at all, so the gap is enormous and entirely legitimate. The discriminator is initstate.

And /proc/kallsyms carries bracketed owner tags that look like module names but aren’t. [bpf] shows up with no module behind it.

Neither is exciting, and both would have produced confident nonsense.

The detector I deleted

The one I’m most pleased about is a detector that worked and got removed anyway.

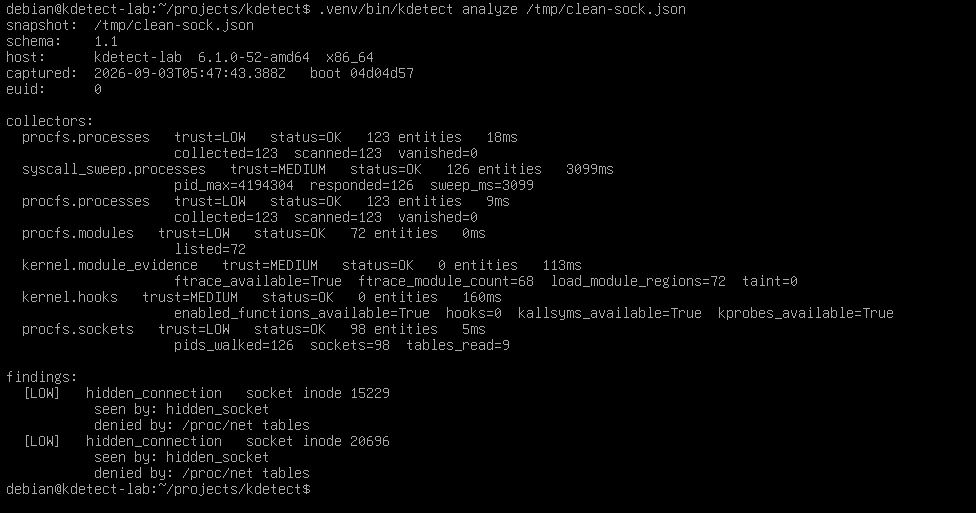

Phase 4a shipped a hidden_socket signal: a file descriptor a process holds that appears in none of the /proc/net tables, which sounds exactly like a connection hidden from those tables. The clean-host calibration disproved it in a single run. Two hidden_connection findings on a machine with nothing loaded on it:

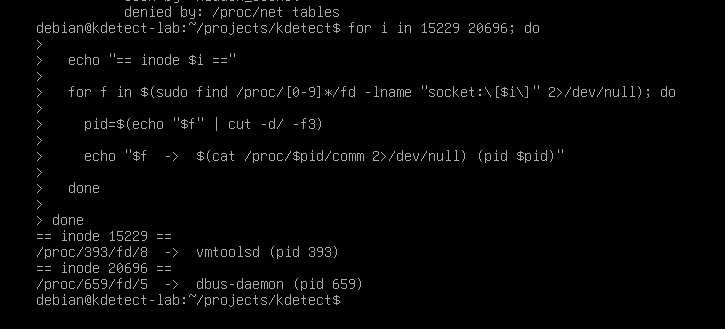

Tracing both inodes back through /proc/<pid>/fd named the culprits, and neither was a rootkit:

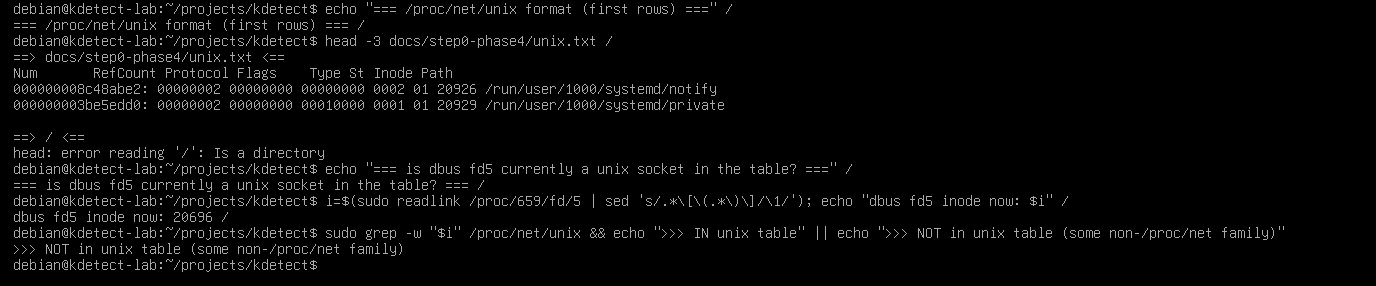

vmtoolsd’s AF_VSOCK link to the VMware host, and a dbus-daemon socket. Several real socket families have no /proc/net table at all, and a file descriptor carries no address family you could use to tell the difference:

There is no /proc/net/vsock to add. “In no table” and “hidden” are indistinguishable under a /proc-only design.

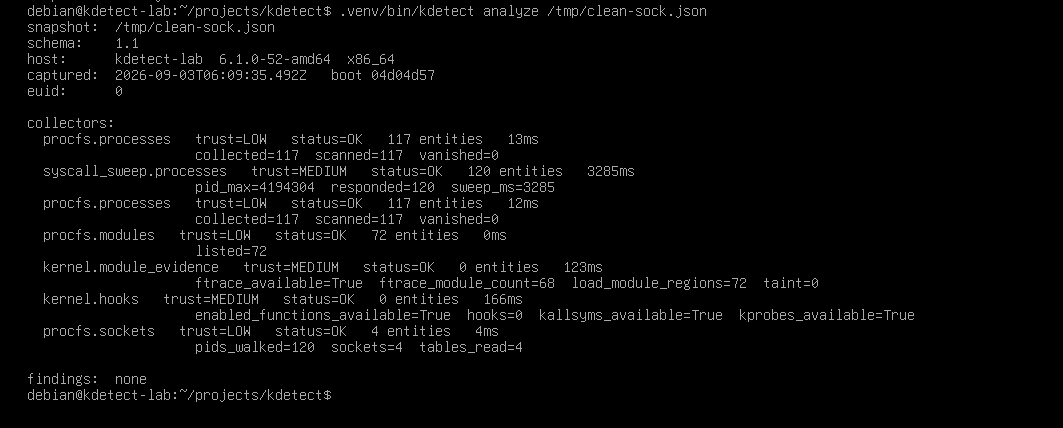

So the signal came out, along with the finding kind that depended on it. What stayed is the direction that is sound: a socket that is in a table, owned by a pid that readdir won’t list, which is strong evidence of a hidden process. Detecting a genuinely hidden connection needs sock_diag netlink — how ss actually works — and that’s deferred rather than faked.

Tuning a threshold would have kept the feature and hidden the problem, so deleting it was the honest option.

Proving it on a real rootkit

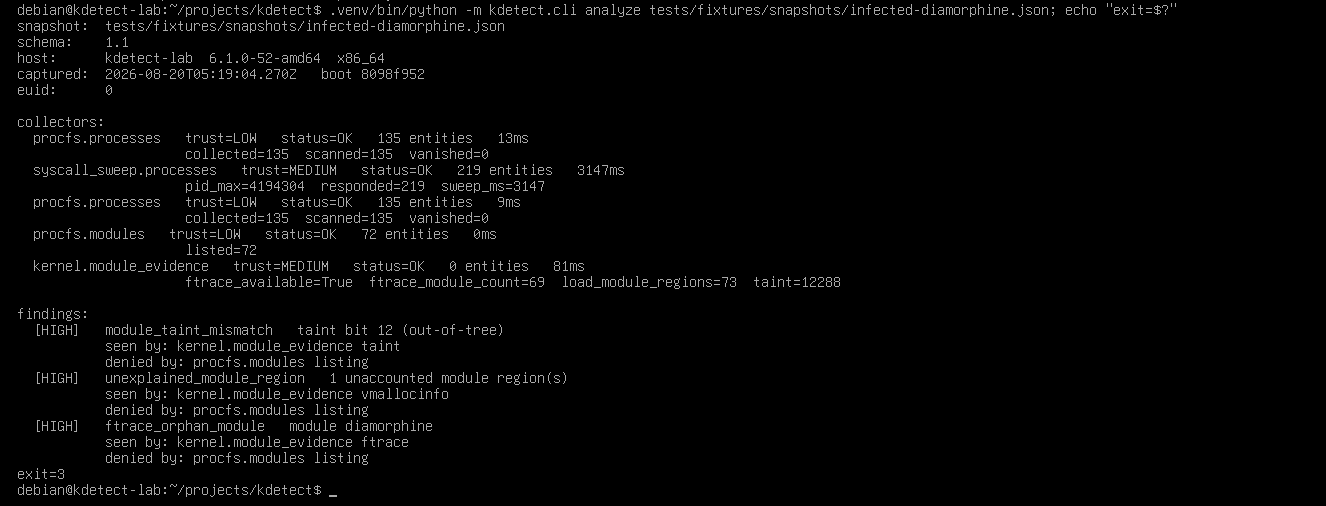

Calibration tells you the false positive rate. It doesn’t tell you the thing works. For that I ran it against Diamorphine, a well-known Linux LKM rootkit, on Debian 12 with kernel 6.1.0-52. Its hidden module was caught three independent ways:

Taint bit 12 set, one vmalloc region more than /proc/modules accounts for, and an ftrace record still carrying the module’s name after it unlinked itself. Diamorphine had removed itself from the listing and left its fingerprints on three channels it didn’t think to clean.

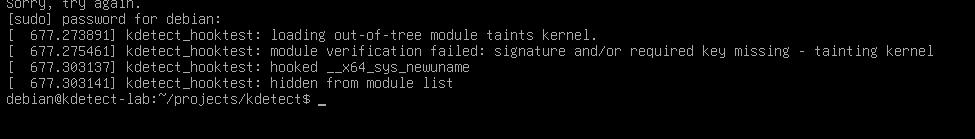

Real rootkits are awkward ground truth, though. You can’t commit one, and you can’t ask a reader to trust a screenshot. So I also wrote a small kernel module of my own, kmod/kdetect_hooktest.c, which hides itself from /proc/modules and installs an ftrace hook on a syscall. It’s GPL-2.0, it’s committed, it builds, and it’s the ground truth for hook detection that anyone can reproduce.

Because I wrote it, I can run the control case that a real rootkit won’t give you. Loaded but not hiding, it shows up in lsmod and kdetect says nothing:

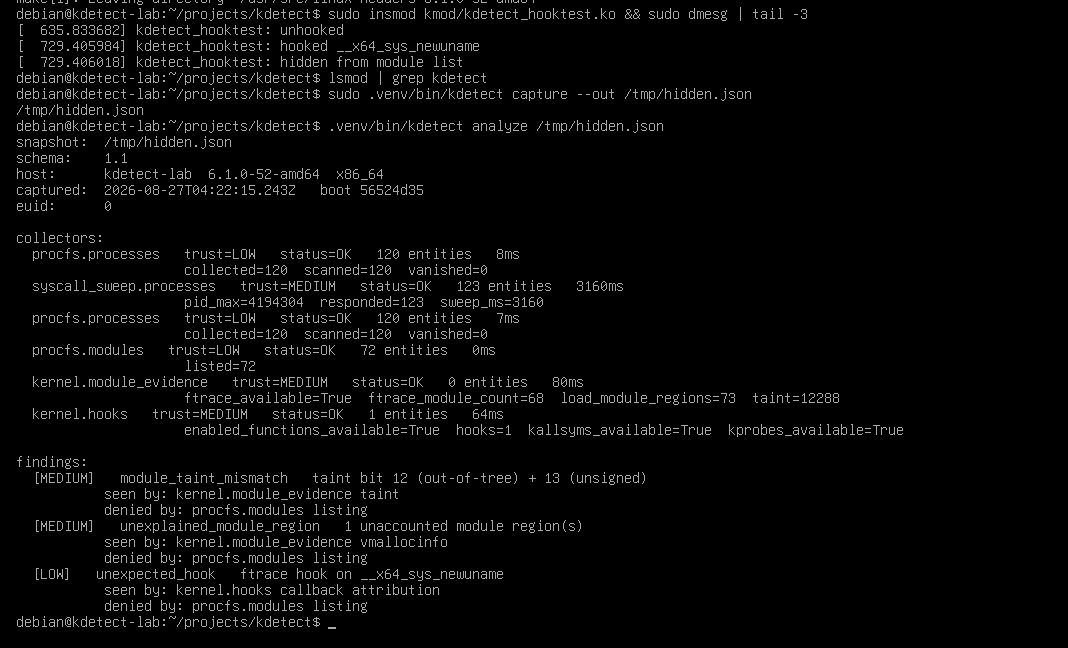

Told to hide, the same module on the same boot starts contradicting the listing:

That pair is the test I trust most. The only variable between the two runs is whether the module lies, so anything kdetect reports in the second run and not the first is caused by the hiding rather than by the module merely existing.

Those findings are scored per signal, which is the phase 3a output. Phase 3b composed them per suspect, which is why the same evidence now presents as the single HIGH hidden_module further up rather than a MEDIUM, a MEDIUM and a LOW.

What it looks like

The repository ships real captures from the lab VM, so this runs with no VM and no root:

kdetect analyze tests/fixtures/snapshots/infected-hooktest.json

  procfs.modules   trust=LOW   status=OK   74 entities   0ms
                     listed=74
  kernel.module_evidence   trust=MEDIUM   status=OK   0 entities   93ms
                     ftrace_available=True  ftrace_module_count=70  load_module_regions=75  taint=12288
  kernel.hooks   trust=MEDIUM   status=OK   1 entities   71ms
                     enabled_functions_available=True  hooks=1  kallsyms_available=True  kprobes_available=True

findings:
  [HIGH]   hidden_module   module kdetect_hooktest
           seen by: taint, unexpected_hook, vmalloc_region
           denied by: procfs.modules listing

Three channels named the module and the listing denied it. Seventy-five module regions in vmalloc against seventy-four listed, and taint bits 12 and 13 set with no listed module wearing the marker.

kdetect capture needs a live /proc and so runs on Linux only. Analysis, reporting and redaction work on the JSON anywhere, which means you can capture on the suspect host and analyse somewhere you trust. Exit codes are scriptable: 0 means no findings, 3 means findings, and neither one indicates a crash.

Confidence is a corroboration count

Every finding names both the channels that saw the thing and the channel that denied it, and confidence is corroboration count scoped per suspect. One channel is LOW. Two is MEDIUM. Three or more is HIGH. There is no tuning knob and no model, and I can explain any score in a sentence.

The reporting layer concludes nothing of its own. It presents what the analysis found, and every line traces back to a finding or a recorded fact. Indicators of compromise are extracted separately, and only for things that travel: a module name, a hooked syscall, a C2 endpoint. Pids and inodes are host-local, so they stay as context. Handing someone a pid as an IOC gives them a number that can’t mean anything on their machine.

Baselines are ordinary snapshots plus a detached ed25519 signature, verified before parsing.

What it can’t detect

The limitations document runs to 26 numbered entries, each traced to captured evidence in the repo. The shape of them:

Cross-view finds inconsistency, not malice. A rootkit that patches every view coherently, or one operating below the level kdetect can see, produces no disagreement and therefore no finding. This is the load-bearing limitation and no amount of extra channels removes it.

kdetect runs on the machine it’s inspecting, parsing input that a kernel-level attacker can influence. On-host signing bounds the problem without solving it. Off-host verification is future work, and I’d rather say that than imply the current design is tamper-proof.

Some evidence is simply gone. A hidden process’s exe and cmdline can’t be recovered, because the collector that records them is the readdir path the rootkit suppressed. A report identifies it by comm, tgid and the sockets it owns, and says plainly that the rest is unavailable. That’s a property of the process being hidden, not a gap in the report.

Ten of the twelve detection methods in the original brief are implemented. One is implemented as a constraint on what kdetect is allowed to read. One is planned.

How it’s put together

One rule shapes the whole codebase: only the Source layer touches the operating system. Everything underneath it — parsers, collectors, detectors, scoring, reporting — is pure, and receives its data as an argument rather than going and fetching it.

That is what makes the fixture seam real. A collector is handed a source:

ProcfsProcessCollector().collect(LiveProcSource())
ProcfsProcessCollector().collect(FixtureProcSource(path))

There is no if testing: branch anywhere, so a fixture-driven test exercises the identical code path as a live capture — which is the only reason the committed Diamorphine capture works as a regression test instead of as a mock that agrees with whatever I last wrote.

The fixture trees carry an _errors.json sidecar mapping each path to an errno, because a directory of copied files can only replay the happy path, and every false positive in this project came out of a failure path: the kernel thread with no exe, the EACCES read, the process that vanished mid-scan. Those reads raise, the same way they do on a real box.

How it was built

Spec-first, in phases, with AI assistance, and the specs and implementation plans are committed under docs/superpowers/ if you want to check the working.

What made that productive was the step-0 habit described above: gather evidence about the real system before designing anything, and trace every limitation to a capture. A model will happily produce a detector that looks correct. Only the clean machine can tell you it fires ninety times on nothing.

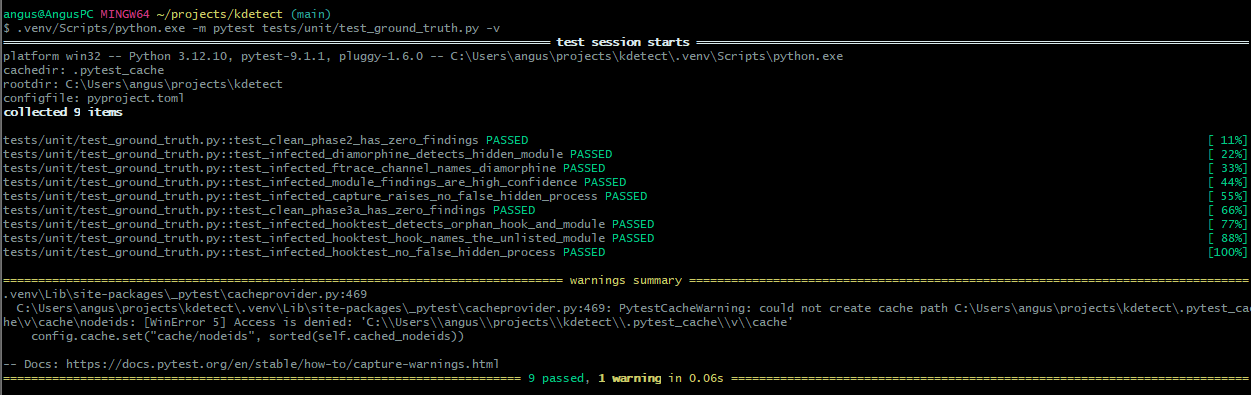

Both rootkits are pinned as committed fixtures with a test each, so a refactor that breaks Diamorphine detection fails the suite:

The clean captures are in there too. A detector that finds nothing is useless, but a detector that finds something on a clean box is worse, so both directions are asserted.

One more guardrail: Python 3.11 is the floor, enforced by a test, because a 3.12-only construct once passed the entire suite on my 3.12 workstation and broke on import on the 3.11 lab VM. Environment drift between where you write code and where you run it is a bug class, so I made it a test rather than a habit.

Links

• kdetect on GitHub — MIT, except the kernel module, which has to be GPL-2.0 to use GPL-only kernel symbols.
• docs/architecture.md — how it’s put together, and the principles behind it.
• docs/detection-methods.md — each detection method, individually.
• docs/limitations.md — all 26, with the evidence.
• docs/threat-model.md — who it’s defending against.

Scope and safety

Live rootkit work belongs on a disposable VM with a snapshot to revert to, never on a workstation. Rootkit source and binaries are excluded from the repository deliberately. .gitignore drops all of lab/targets/, and the only kernel module committed is kdetect’s own benign test module. Nothing here touched a system I don’t own.
