🛡️ Splunk Enterprise — Windows Homelab
Centralised logging + detection engineering for the Cybersecurity Homelab.

1. Lab Topology

HostRoleOS
WIN-SPLUNKSplunk Enterprise 9.xWindows Server 2022
WIN-DC01AD DS / DNS / DHCPWindows Server 2022
WIN-WS01Workstation + SysmonWindows 10 Pro
pfSensePerimeter firewallpfSense CE 2.7

2. Apps / Add-ons Installed

AppPurpose
Splunk App for Windows InfrastructureDashboards for AD, DNS, DHCP, etc.
Splunk Security Essentials (SSE)120+ ATT&CK-mapped detections
Splunk CIM Add-onData-model normalisation
Splunk App for SysmonVisualises Sysmon Event ID 1–24

3. Data onboarding

3.1 Universal Forwarder (UF) installer example

msiexec /i splunkforwarder-9.x.x-x64-release.msi AGREETOLICENSE=Yes ^
  RECEIVING_INDEXER="WIN-SPLUNK:9997" WINEVENTLOG_SEC_ENABLE=1 ^
  WINEVENTLOG_SYS_ENABLE=1

3.2 Event Log Collection Config

Enabled logs:

  • Application
  • Security
  • Setup
  • System

4. Verification & Search

4.1 Successful ingestion check

index=* | stats count by sourcetype
# Confirmed: XmlWinEventLog source type with 659+ events.

4.2 Error checks

index=* sourcetype="XmlWinEventLog:Application" Type="Error"
# Result: 0 application-level errors found.

Dashboard example (Windows VM Security) shows:

  • Failed login attempts
  • Successful logins
  • Most active users
  • Recent application errors

🔐 Brute-Force Detection Simulation (Kali → Windows → Splunk)

Goal: Simulate failed logins from Kali to a Windows 10 host and verify logging, forwarding and detection in Splunk.

Test steps (summary)

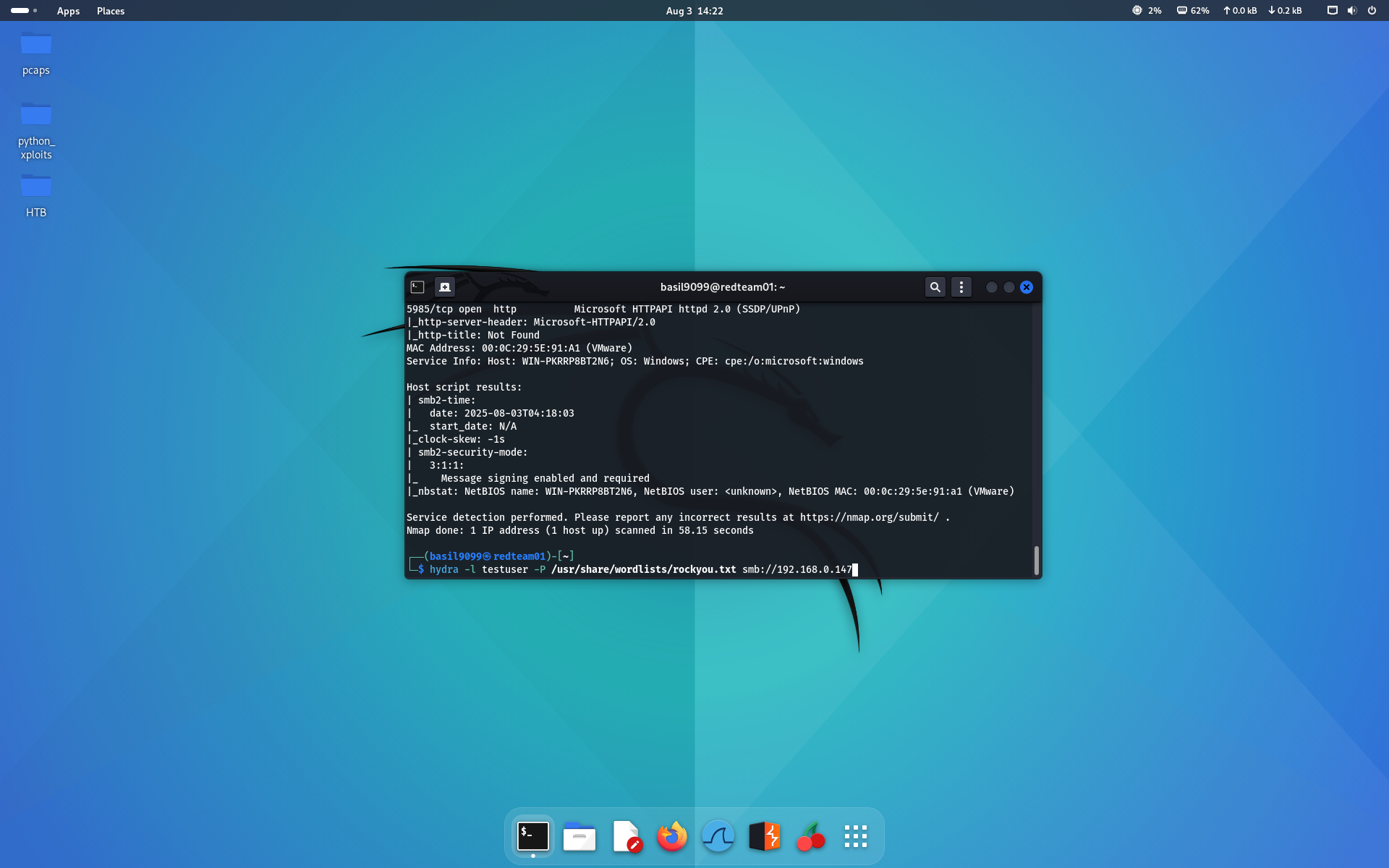

  1. Nmap scan to identify SMB/RDP:
nmap -sV -sC -oN scan-target 192.168.0.147

Nmap scan output

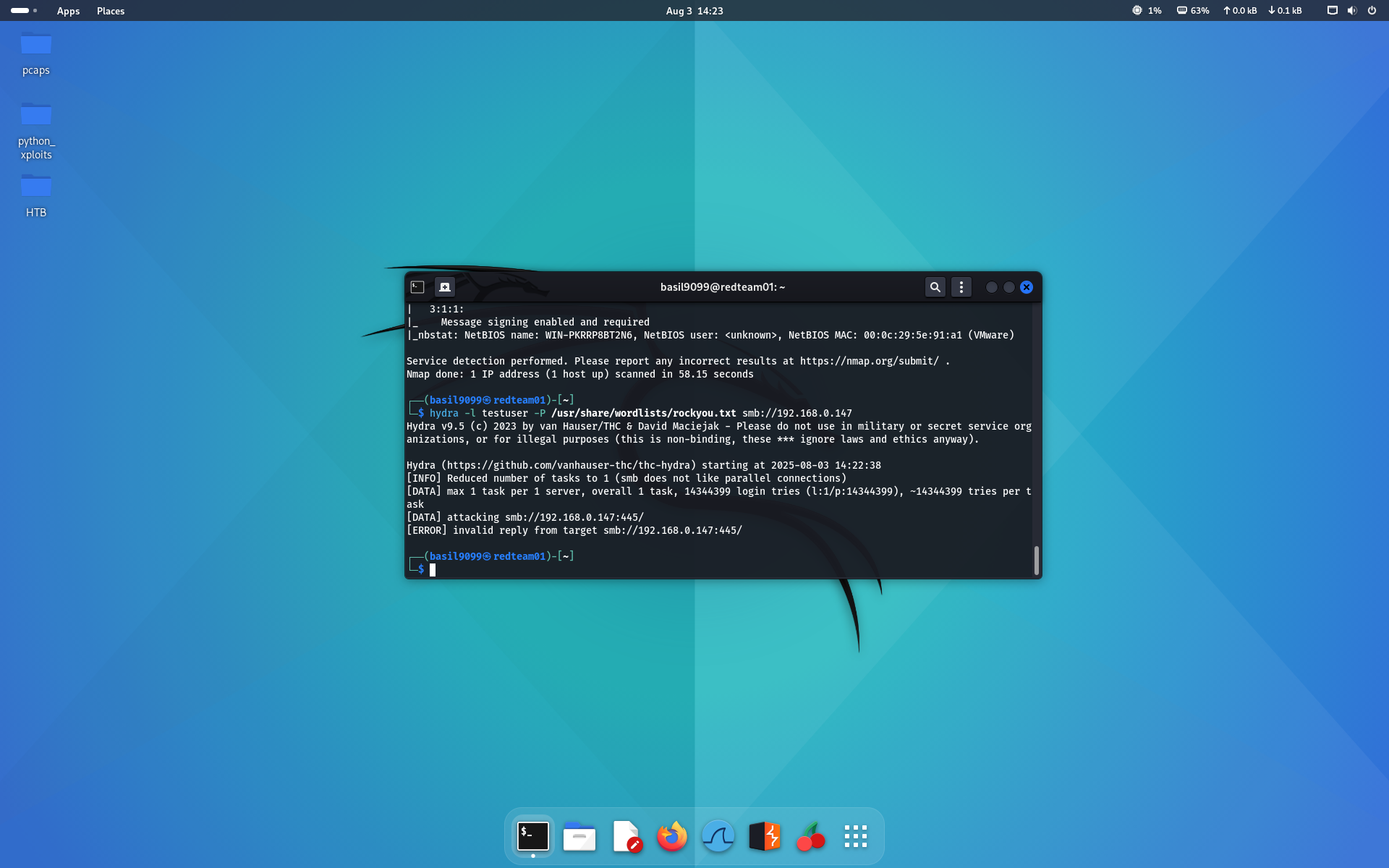

  1. Hydra SMB brute-force:
hydra -l testuser -P /usr/share/wordlists/rockyou.txt smb://192.168.0.147
# Expect NT_STATUS_LOGON_FAILURE events

Hydra

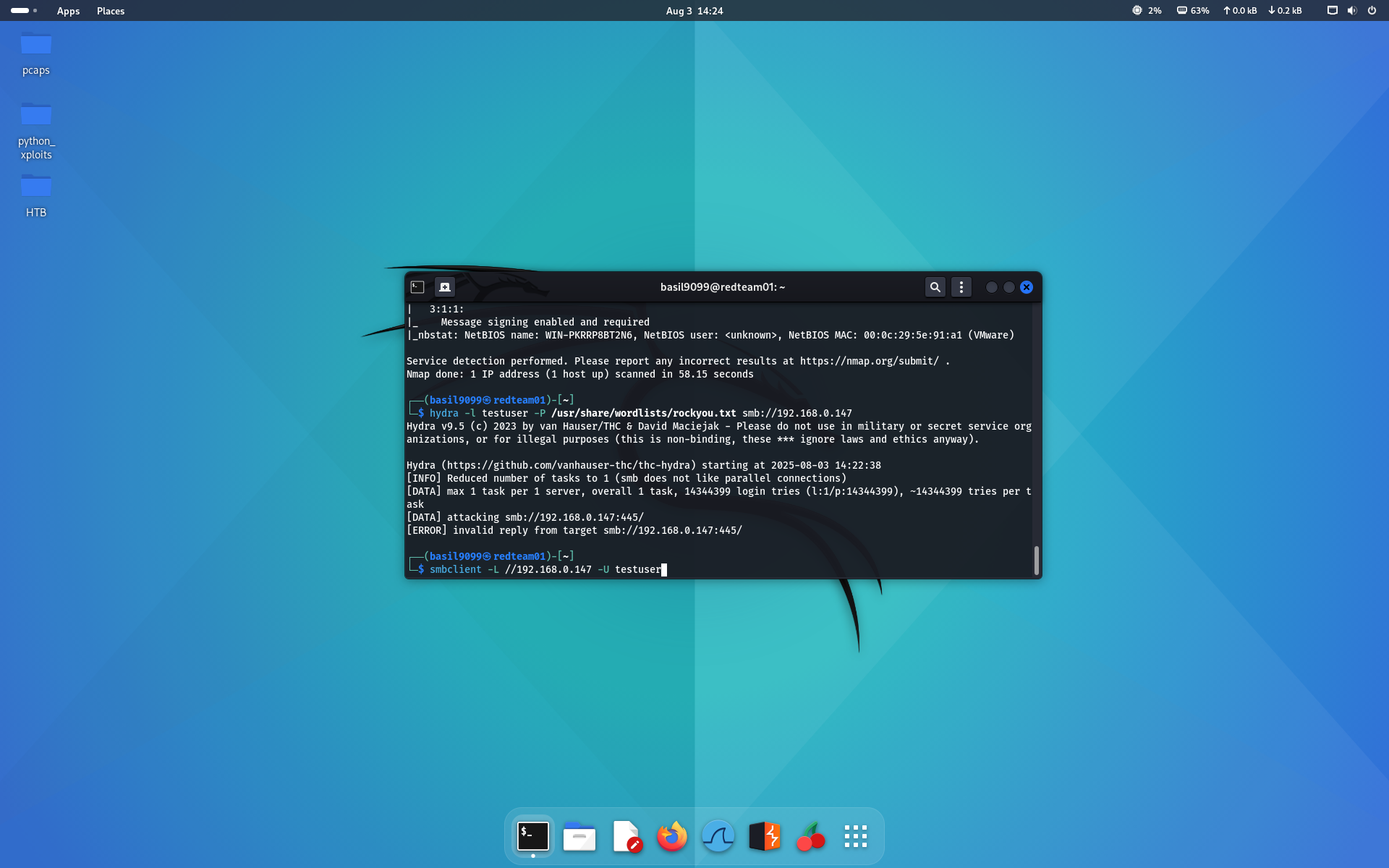

  1. Manual smbclient verification:
smbclient -L //192.168.0.147 -U testuser
# returns NT_STATUS_LOGON_FAILURE

SMBclient

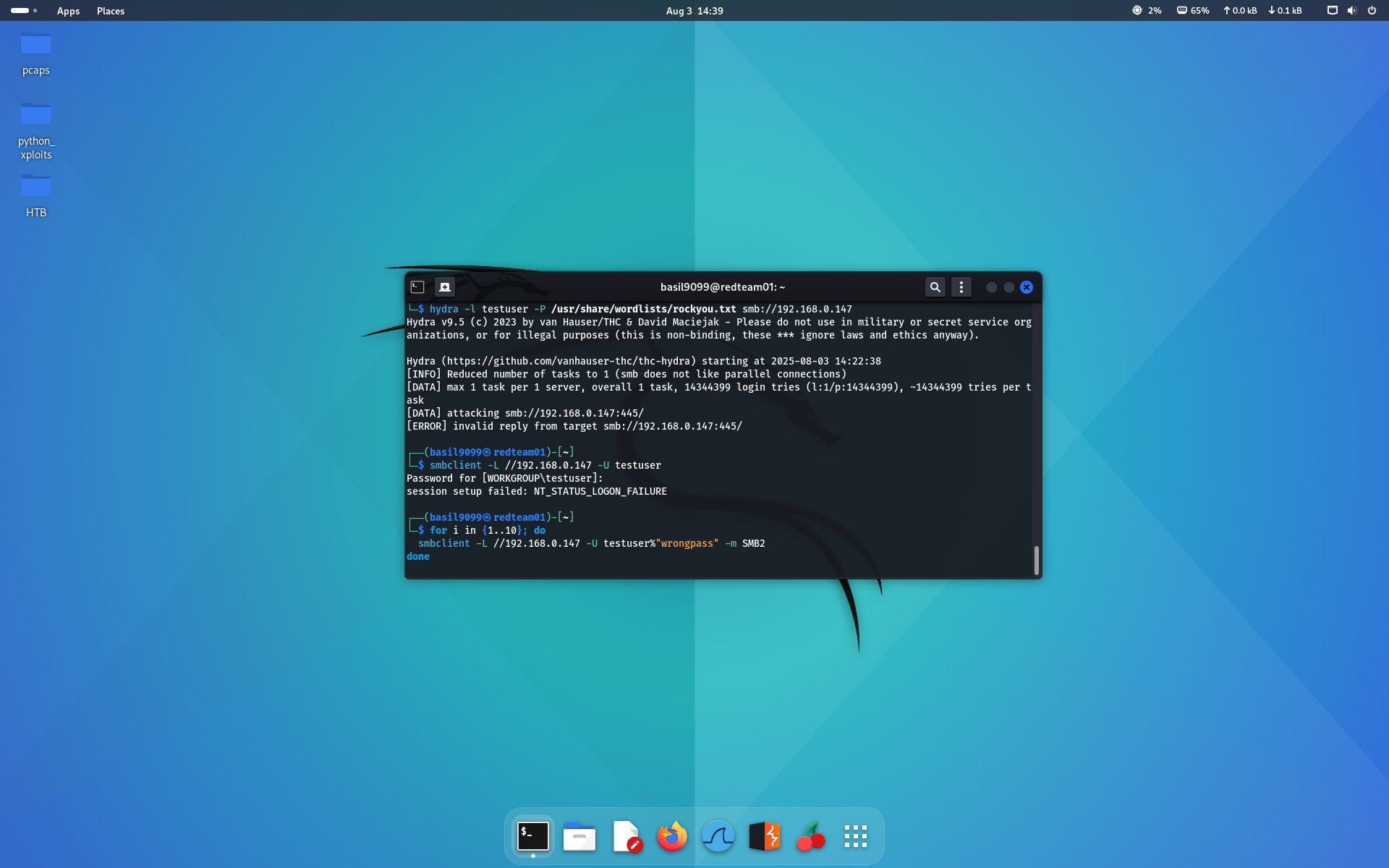

  1. Scripted brute-force loop (generate many failures):
for i in {1..10}; do
  smbclient -L //192.168.0.147 -U testuser%"wrongpass" -m SMB2
done

Scripted bruteforce

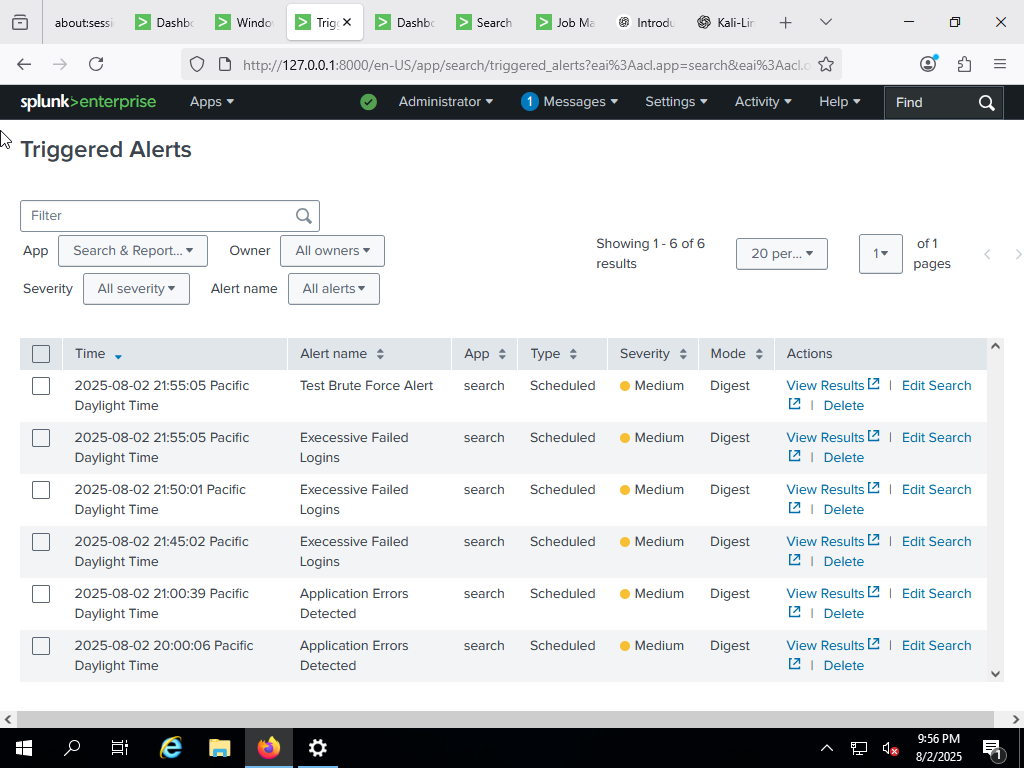

Splunk detection query (example)

index=wineventlog EventCode=4625
| stats count by Account_Name, src_ip
| where count > 5

If count > 5 per account and src_ip, trigger an alert — this was the condition used to demonstrate detection.

Success Criteria Met

  • Attack from Kali → logged on Windows (EventCode 4625) → forwarded by UF → indexed & searchable in Splunk → alert triggered & visible in dashboard.

Splunk detection

✅ Summary & Next Steps

  • Logs from Windows hosts ingested successfully.
  • Dashboards and queries validated visibility of relevant event types.
  • Next: integrate EDR, SIEM dashboards, and simulated phishing to test detection coverage.

🔗 References

  • Splunk Universal Forwarder docs
  • Splunk App for Windows Infrastructure
  • re: Windows Event IDs (particularly 4625)
  • HTB retired machines / homelab resources
